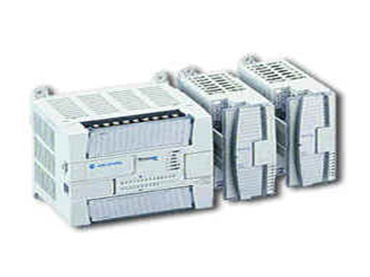

MicroLogix 1200程式與SLC500相容
使用RSLogix500程式編輯軟體
◆ 內建主機/電源與I/O為一體,可擴充6片IO達136 I/O點。
◆ 有6個數位機型(24/40點)。
◆ 內建6KWord記憶容量,與1組RS232通訊埠。
◆ 提供 20 kHz高速輸入。
◆ 20 kHz高速輸出 PTO (Pulse Train Output)或PWM (Pulse Width Modulated) 作步進或伺服馬達控制。
| Documentation | ||||||
| 型號 | 輸入型式 | 輸出型式 | 電源 | 輸入 | 輸出 | |
| 1762-L24AWA | AC | Relay | AC | 14 | 10 | |
| 1762-L24BWA | DC | Relay | AC | 14 | 10 | |
| 1762-L24BXB | DC | Relay/FET | DC | 14 | 10 | |
| 1762-L40AWA | AC | Relay | AC | 24 | 16 | |
| 1762-L40BWA | DC | Relay | AC | 24 | 16 | |
| 1762-L40BXB | DC | Relay/FET | DC | 24 | 16 | |
| 數位模組： | ||
| 型號 | 說明 | |
| 1762-IA8 | 8-point 120V ac input | |
| 1762-IQ8 | 8-point sink/source 24V dc input | |
| 1762-IQ16 | 16-point sink/source 24V dc input | |
| 1762-OA8 | 8-point ac triac ouput | |
| 1762-OB8 | 8-point sourcing 24V dc output | |
| 1762-OB16 | 16-point sourcing 24V dc output | |
| 1762-OW8 | 8-point ac/dc relay output | |
| 1762-OW16 | 16-point ac/dc relay output | |
| 類比模組： | ||
| 型號 | 說明 | |
| 1762-IF2OF2 | 2-channel analog voltage/current input, 2-channel voltage/current output |
|
| 1762-IF4 | 4-channel analog voltage/current input | |
