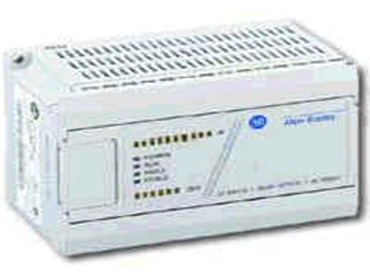

MicroLogix 1000程式與SLC500相容
使用RSLogix500程式編輯軟體
◆ 內建主機/電源與I/O為一體,不能擴充I/O
◆ 有11個數位機型(10/16/32點)與3個類比機型
◆ 內建1KWord記憶容量,與1組RS232通訊埠
| Documentation | ||||||
| 型號 | 輸入型式 | 輸出型式 | 電源 | 輸入 | 輸出 | 尺寸LxWxH |
| 1761-L10 BWA | DC | Relay* | AC | 6 | 4 | 120x80x40mm, 4.72x3.15x1.57in. |
| 1761-L10 BWB | DC | Relay* | DC | 6 | 4 | 120x80x40mm, 4.72x3.15x1.57in. |
| 1761-L20 AWA-5A | AC | Relay, Analog | AC | 12 AC 4 Analog |
8 Relay 1 Analog |
200x80x73mm, 7.87x3.15x2.87in. |
| 1761-L20 BWA-5A | DC | Relay, Analog | AC | 12 AC 4 Analog |
8 Relay 1 Analog |
200x80x73mm, 7.87x3.15x2.87in. |
| 1761-L20 BWB-5A | DC | Relay, Analog | DC | 12 AC 4 Analog |
8 Relay 1 Analog |
200x80x73mm, 7.87x3.15x2.87in. |
| 1761-L16 AWA | AC | Relay* | AC | 10 | 6 | 133x80x73mm, 5.24x3.15x2.87in. |
| 1761-L32 AWA | AC | Relay* | AC | 20 | 12 | 200x80x73mm, 7.87x3.15x2.87in. |
| 1761-L16 BWA | DC | Relay* | AC | 10 | 6 | 120x80x73mm, 4.72x3.15x2.87in. |
| 1761-L32 BWA | DC | Relay* | AC | 20 | 12 | 200x80x73mm, 7.87x3.15x2.87in. |
| 1761-L16 BBB | DC | DC MOSFET/Relay* |
DC | 10 | 6 | 120x80x40mm, 4.72x3.15x1.57in. |
| 1761-L32 BBB | DC | DC MOSFET/Relay* |
DC | 20 | 12 | 200x80x40mm, 7.87x3.15x1.57in. |
| 1761-L16 BWB | DC | Relay* | DC | 10 | 6 | 120x80x40mm, 4.72x3.15x1.57in. |
| 1761-L32 BWB | DC | Relay* | DC | 20 | 12 | 200x80x40mm, 7.87x3.15x1.57in. |
| 1761-L32 AAA | AC | AC Triac/Relay* | AC | 20 | 12 | 200x80x40mm, 7.87x3.15x1.57in. |
